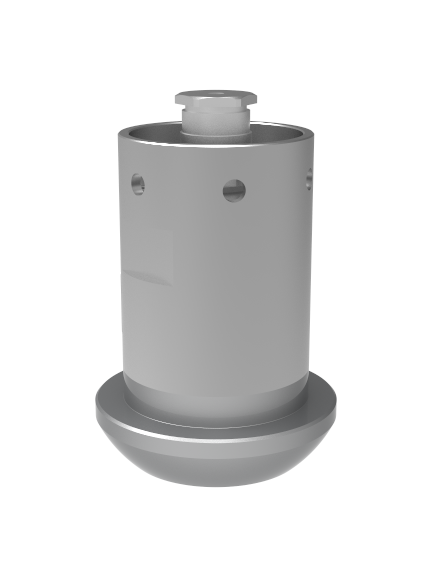

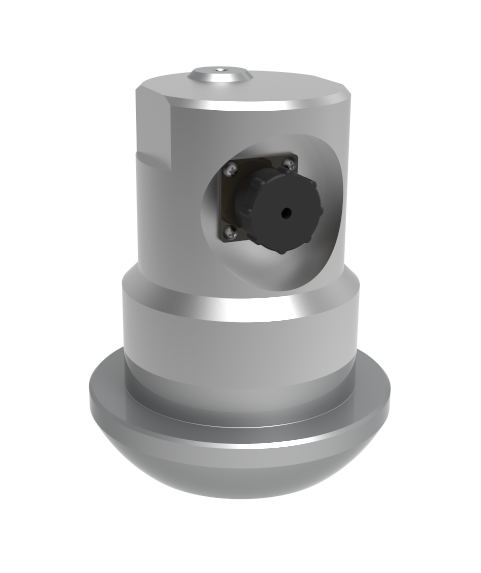

Pressure Transducer TP-140D(MA) (2-wired)
Category: Sensors, Sensors with Output 4-20 mA
Technical characteristics:
| Capacity, kgf/cm2 | 250/400/600/1000* |
| Min. measured pressure, kgf/cm2 | 0.1 |
| Accuracy, %FS | ±1.5 |
| Calibration interval, months | 36 |
| EX Marking, IEC | 1 Ex ib IIB T4 Gb |
| EX Marking, ATEX | II 2G Ex ib IIA T3 Gb |
| Rated supply voltage, V | 12…24 |
| Ingress protection | IP 66 |
| Communication interface | RS-485 |
| Communication protocol | Modbus |
| Analog Output, mA | 4…20 |
| Ambient temperature range, °С | -45…+65 |
| Weight, kg | 2.4 |

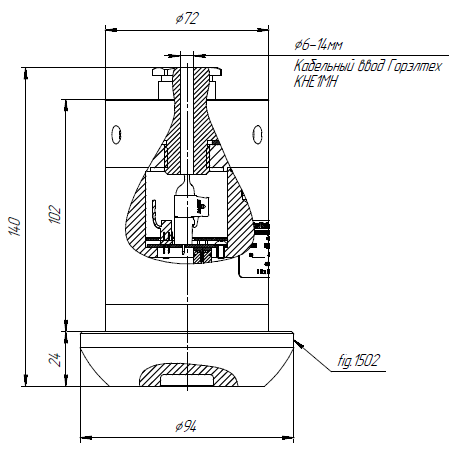

| Dimensions(Fig.1502), mm, max. | Ø94х144 |

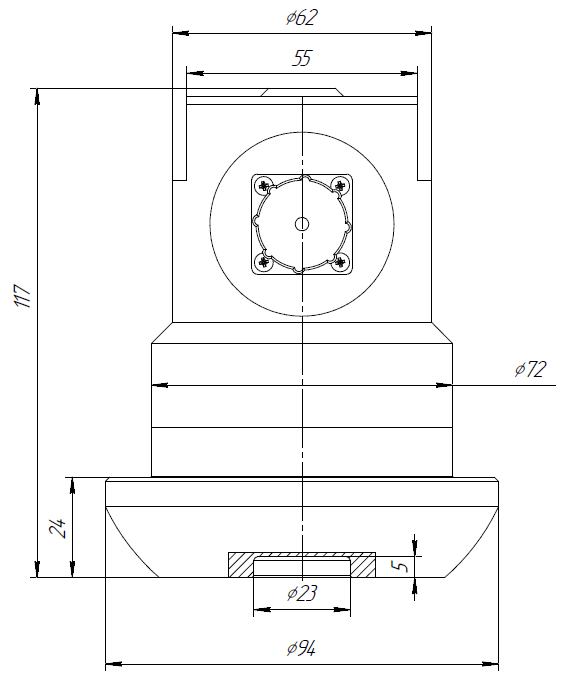

The TP-140D(MA) (2-wired) Pressure Transducer is designed to measure liquid pressure in the pipelines with neutral and aggressive media without a phase separator. The sensor has 4...20 mA output and is manufactured in both 2” configurations, Fig.1502 and Fig.1002
Capabilities
- Explosion-proof protection;
- Suitable for aggressive, viscous, heterogeneous media;
- Extended calibration interval;
- Rated for high pressure operation.
Design features
- No phase separator is required;
- Installation in the 2” conic quick-release coupling on pipe manifold
